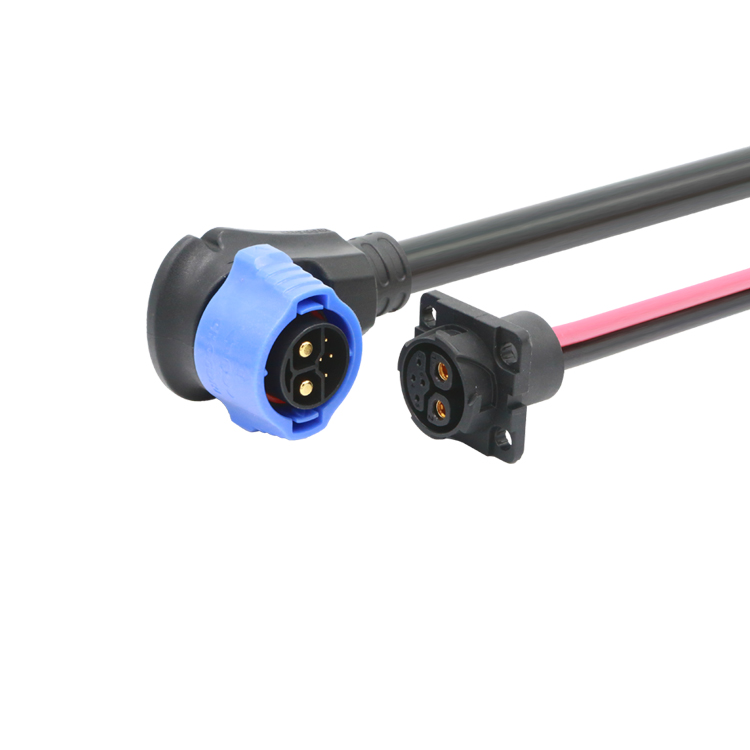

Large pro 2+4 (50A+5A)

應用范圍：為電動摩托車充放電提供電氣連接

Advantages
1. Reliability
? Vibration Resistance
? IP67 Mated; IPX7 Panel Side
2. Ease of Use
? Proper Connection Detectability
3. Compatibility
? Backward Compatible with Large 2+4
4. RoHS and REACH compliant

下載圖紙標準品資料聯系我們

規格參數相關產品

Mating Cycle：≥3,000 Cycles	Voltage Rating：300V DC	Operating Temperature：-40°C to 105°C
Pullout Force：<100N	Current Rating：50A + 5A	IP Rating：IP67 Mated; IPX7 Panel Side
Wire Processing：Solder	Withstand Voltage：2,000V AC	Salt Spray：5% Nacl, 48H
Wire Gauge：Power 9AWG/ Max Signal 20AWG/ Max	Insulation Resistance：>500MΩ at DC 500V	Flammability Rating： UL94V-HB (Plastic Material) / Plug Side UL94V-0 (Plastic Material) / Panel Side
