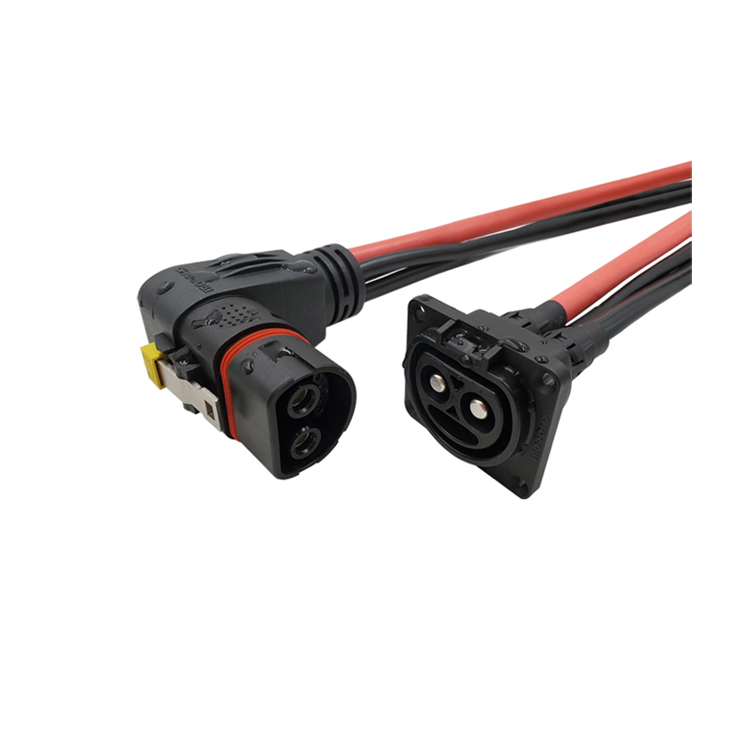

Banga100 2+6 Pin (100A+5A)

應用范圍：為電動摩托車充放電提供電氣連接

規格參數相關產品

Mating Cycle: ≥3,000 CyclesVoltage Rating: 630V DC (Power)
                         100V DC (Signal)
Operating Temperature: -40°C to 105°C
Wire Processing: Crimp (Power)
                            Solder (Signal)		Current Rating: 100A+5AIP Rating: IP66 Mated, IP67 Panel Side
Insulation Resistance: >100MΩPeak Current: Power 180A 30SSalt Spray: 5% Nacl, 48H

Wire Gauge: Power 25mm2/Max

                     Signal 20AWG/Max

Withstand Voltage: 3,500V AC (Power)
                               1,500V AC (Signal)		Flammability Rating:
UL 94 V-0 (Plastic Material)
